On June 10th, 2021, the official of Jinqiang Blue Whale Basketball Club unveiled its new home and wrote: "Waiting is a long ordeal, but it is also the happiest. Looking forward to the final perfect bloom! "
The interior of Chengdu Jinqiang International Competition Center unveiled its expectation.
Jinqiang International Competition Center, with a total construction area of 162,200 ㎡, includes 14,000 large first-class gymnasiums, 42,000 ㎡ supporting businesses and 45,000 ㎡ underground parking lots. As one of the main venues of the 2021 Summer Universiade, it is the first NBA-level professional basketball stadium in Sichuan and one of the landmark buildings in Chengdu.

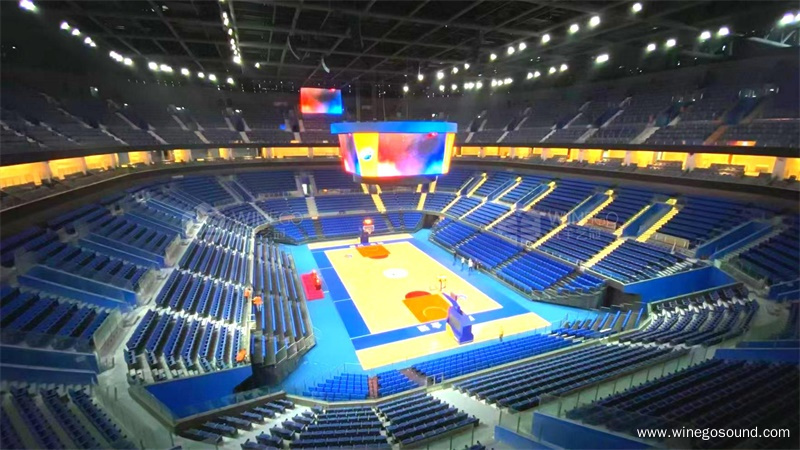

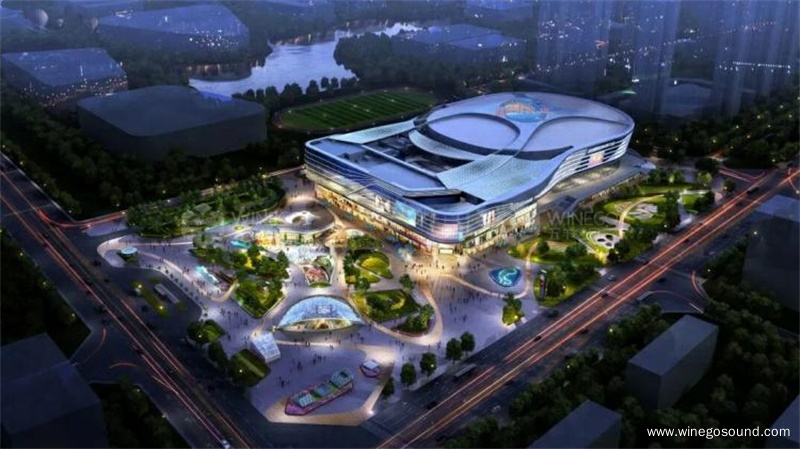

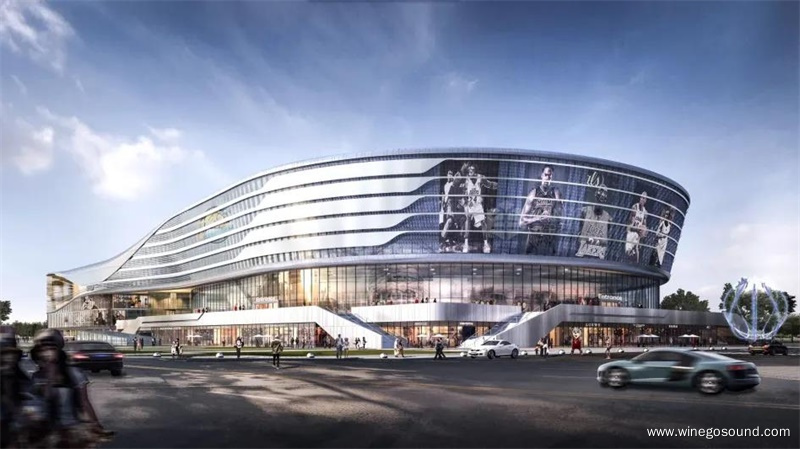

（Real shot of Jinqiang International Competition Center）
Acoustic analysis
Born for the "ultimate experience", as the first NBA-level professional basketball stadium in Sichuan, the sound environment construction of this project conforms to the first-class international acoustic index of the stadium, and the sound construction technology and materials adopted are top-notch, which can provide good sound field quality effects for various international sports events.
Acoustics problems need to be considered in the acoustic design of professional basketball competition venues, such as the loud noise generated by athletes during the competition, the sensational sound of tens of thousands of spectators cheering together, the low-frequency noise mixed with words in the audience, and the hum of mechanical equipment such as electric sound, lighting and air conditioning.
If we don't do acoustic treatment or improper treatment, these sounds will form a primary reflection and a secondary reflection echo in space, which will seriously interfere with the athletes' play, affect the fair judgment of the referee and the audience's watching experience. Therefore, it is particularly important to do a good job of sound absorption and control the reverberation time of stadiums and gymnasiums within 1.3~2.1 seconds.

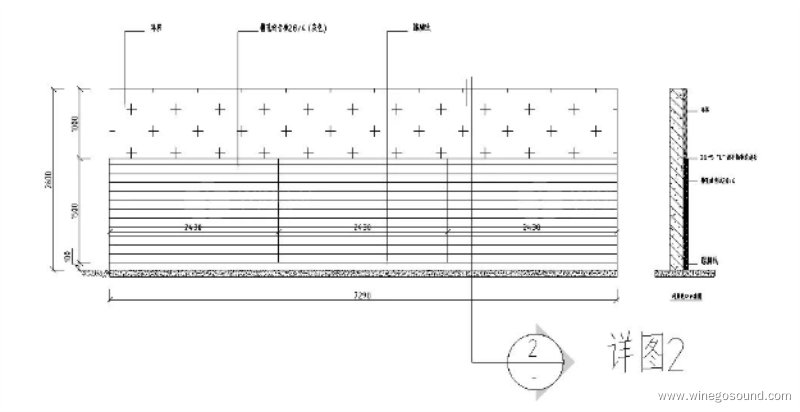

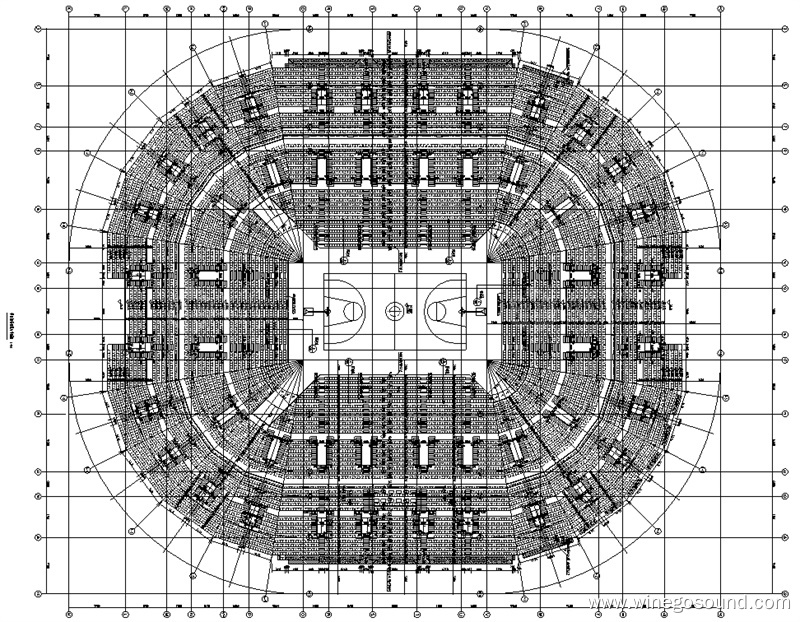

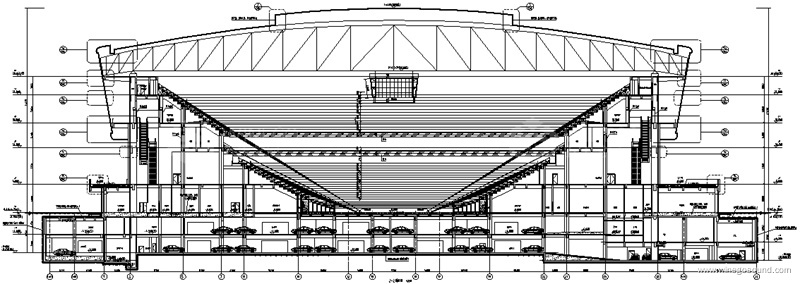

（Plan/profile design of the competition center）

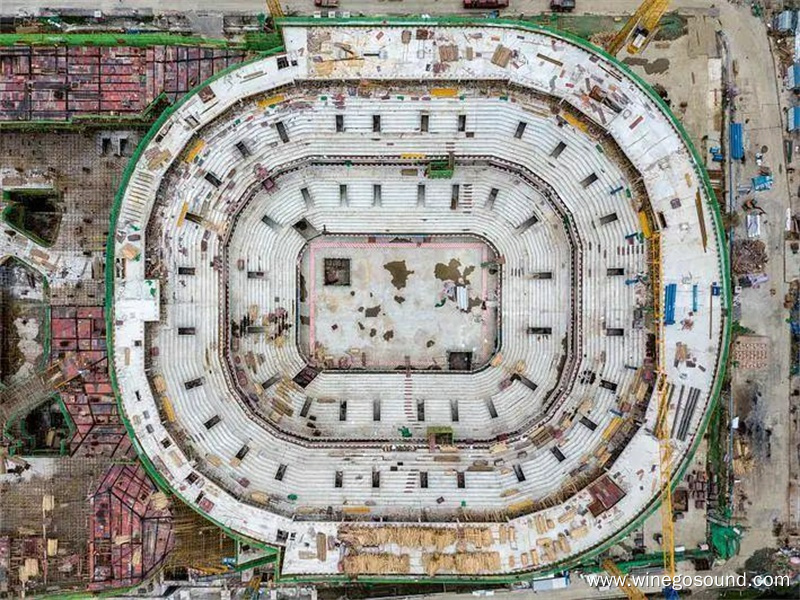

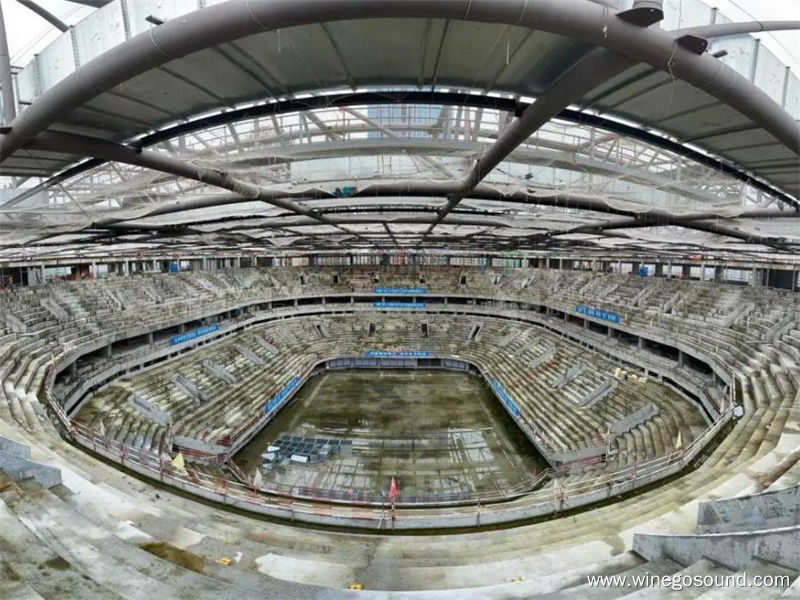

（Competition center under construction）
Matching the quality positioning required by the international level of NBA in the venue, the customer compared the density of product samples of various bidding companies and the meticulous degree of process treatment, and resolutely chose WINEGO for cooperation. A-class MGO grooved acoustic panel are laid on a large area to absorb sound in places within the venue, such as river blocking, ring screens, passages and cat holes, supplemented by A-class fireproof decorative panel and wood cuttings of the same color and material, so as to maintain the unity of the venue decoration effect.
While ensuring the acoustic effect, in order to restore the visual effect of the design drawings, our master, who has nearly 20 years of painting experience, has prepared brilliant blue and fortress gray that the designer is satisfied with according to the design renderings after more than a dozen experiments and comparison of paint colors. It is amazing to see the effect of finished products on the spot.
Achieved acoustic effect
Before acoustic treatment, the reverberation time is long, the echo is large, and the sound is unclear, which makes people feel uncomfortable and laborious. Without acoustic treatment, this acoustic environment will invisibly affect the performance of athletes and the watching experience of the audience, and will soon be abandoned by people.
After acoustic treatment, the reverberation time is short, the echo is small, the sound is clear and audible, the sound field is evenly distributed, and the listening effect is very comfortable, which provides high-quality experience for athletes, referees and spectators on the spot.
The decorative effect achieved
A-class MGO grooved acoustic panel
Trough-hole sound-absorbing board is a typical structural sound-absorbing material, which has excellent sound-absorbing and noise-reducing effects on middle and low frequencies because of the structure of slotted front and open back. The material is fashionable in color, exquisite in material selection, has both acoustic and decorative functions, and has a wide range of applications.

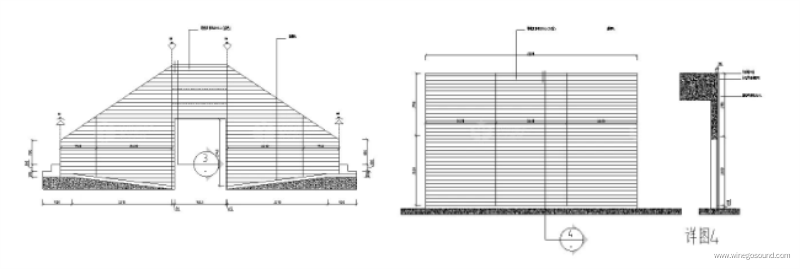

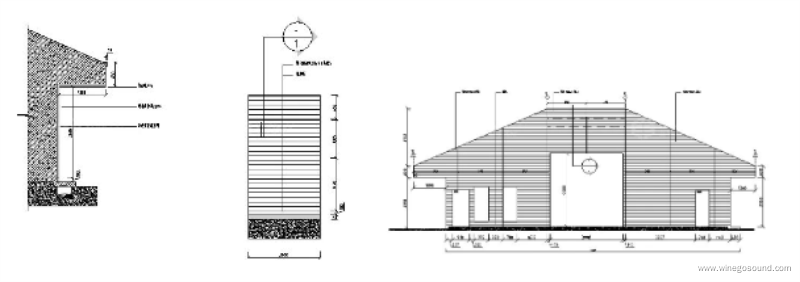

The grooved acoustic panel of this project is used in the positions of river blocking, ring screen, entrance passage, cat hole, etc., and the horizontal installation method is adopted, which greatly enhances the horizontal impact effect of vision.
The construction party of the project is unfamiliar with the installation process of the product. Our special technicians give on-site guidance on the closing of the sound absorption panel between the slotted hole and the corner, the skirting line, the fire hydrant and other positions, the arc treatment of the best sound absorbing panels designed according to the wall surface, and the arrangement of materials, which greatly improves the material utilization efficiency and the installation effect is extremely meticulous and smooth. Pay attention to the feelings that users hear, see and touch in the stadium from the details.

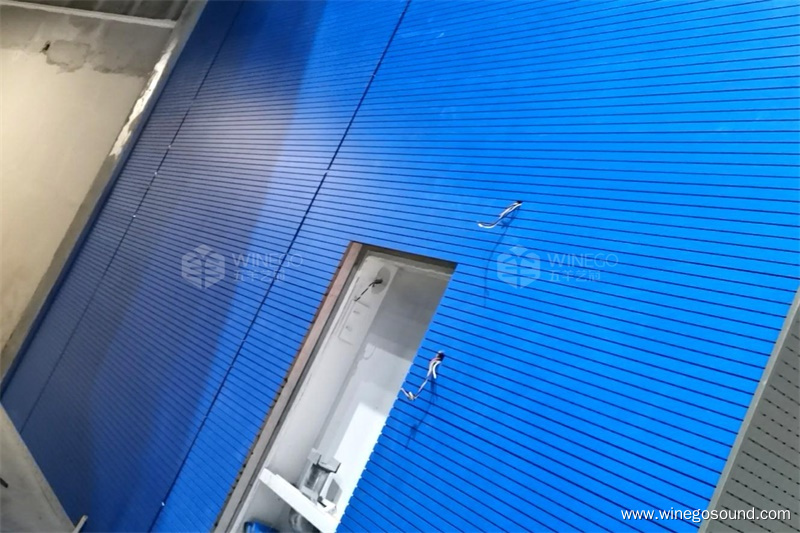

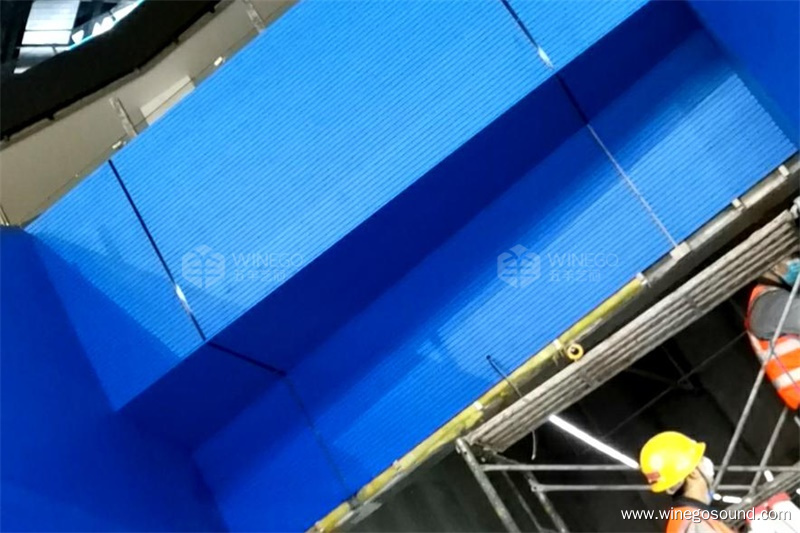

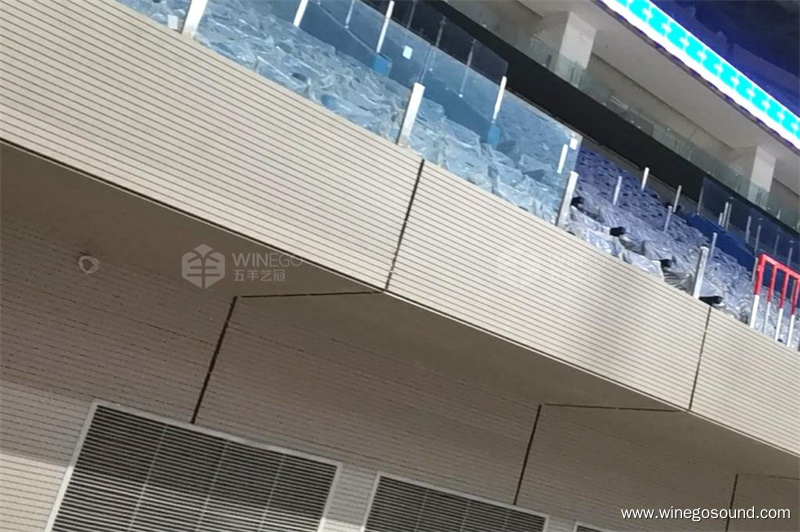

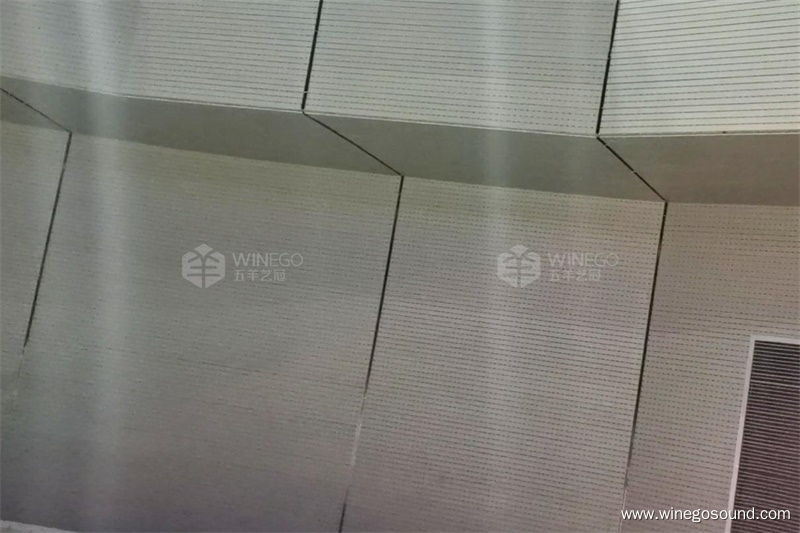

（The real shooting effect of the installation of grooved acoustic panel）
Decorative panel
Select the industry's high-quality fire-proof base materials and wood veneer finishes, and adopt exquisite production technology to complete all product process details before leaving the factory. WINEGO has a mature and perfect decorative panel installation and edging system, which can be simply assembled on site, with simple operation and beautiful effect.

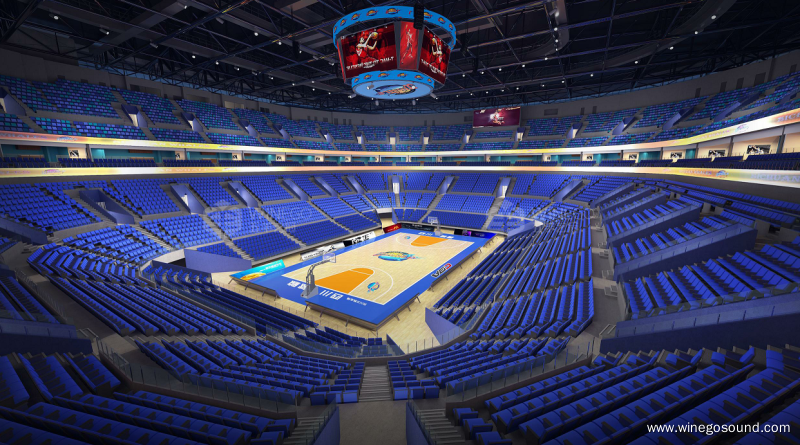

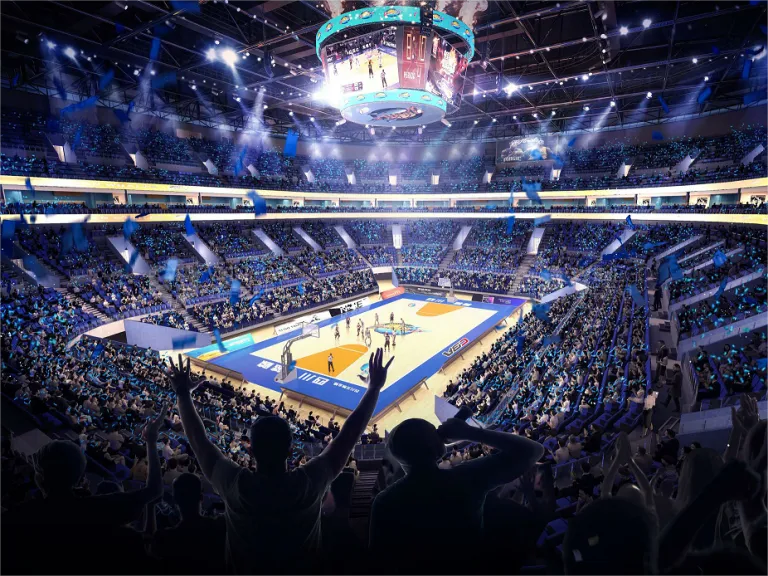

（Designer's renderings）

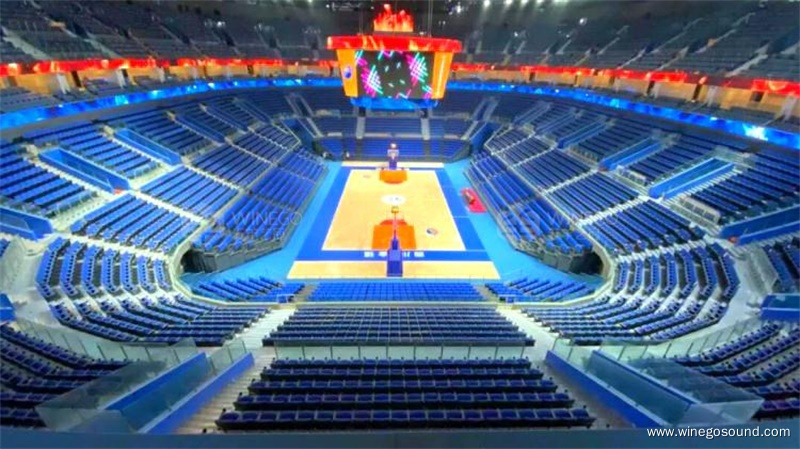

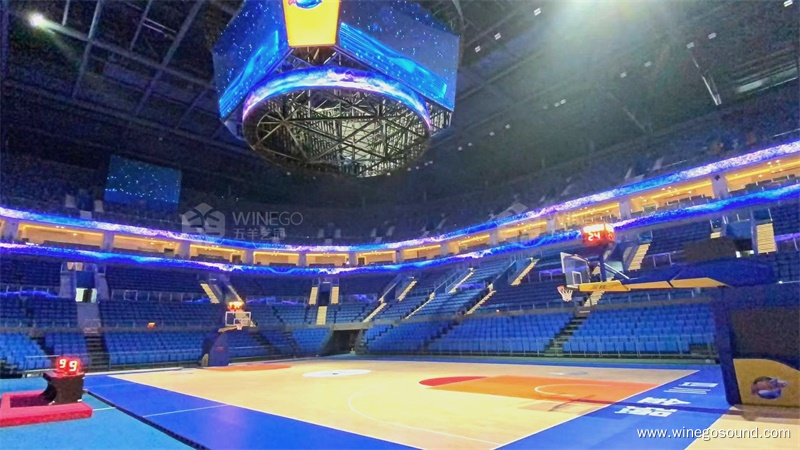

（Real shot of finished product）
Matching with the grooved acoustic panel, decorative panels with the same finish and material are used in the site, which together with the grooved acoustic panel form a layered integrated effect, highly restoring the designer's design effect, echoing the design concept of the "whale" in the competition center, and being brave, tenacious and struggling to swim like a blue whale, full of strength and freedom.
The project landed smoothly and achieved the acoustic and visual effects of the venue. Congratulations to Chengdu Jinqiang International Competition Center for its successful conclusion!
