Groove acoustic panel is the common sound absorption materials in modern buildings. The structure of groove in surface and perforation in back is base on scientific calculation and acoustic theories. The panel has excellent noise reduction and sound absorption performance, especially for medium and low frequencies.
Name | Wooden groove acoustic panel |
Structure | Base materials/finish/back |
Base materials | Standard/eco-friendly/fire-resistant/Moisture-proof/A grade non-inflammable/composite fire-resistant/non-formaldehyde solid wood/other customized |
Finish | Natural veneer/melamine/HPL fire-proof /PU painting |
Back | Black fire-resistant sound absorbing fleece/Soundtex sound absorbing fleece |

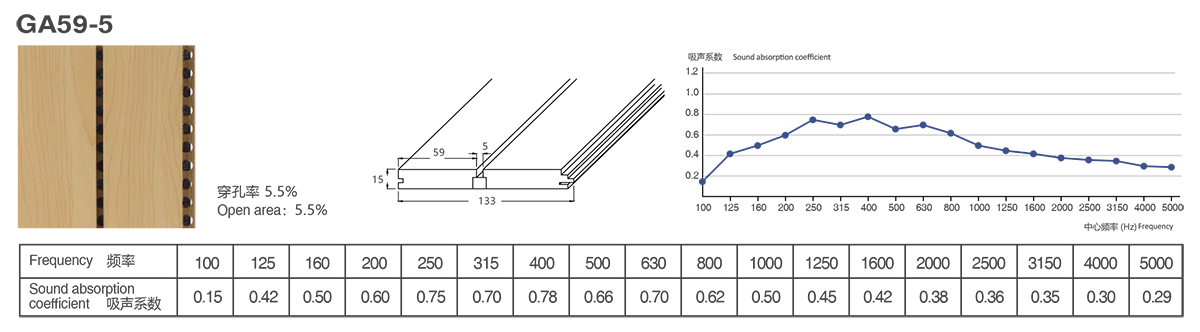

Model | GA59-5/40-3/28-4/18-3/14-2/13-3/9-2/5-3/GA-Art |
Common size | W 133/197mm*L 2440mm* T 12/15/18mm |
NRC | 0.7~0.9 |
Fire-resistant |
|
Formaldehyde emission | 0.08 mg/m3 |
Warranty | 3 years |
Application | Multifunctional hall, conference room, opera hall, cinema, auditorium, hotel, TV station, Music hall, piano room, gymnasium, villa |
▼ MDF series:
Thumbnail label
Verbal communication include sounds, words
▼ Mgo composite fire-resistant series:
A grade Alu & MGO composite board
▼ Non-formaldehyde series:
◕ Preparation work before install and requirement in install place.
◕ The install place should reach the requirement in temperature and humidity in 24 hours before install. The lowest temperature is 15 degree and the range in 40%-60%.
◕ Open the carton at least 48 hours before install.
◕ Install the wood keel or steel keel as per design drawing and construction draw.
◕ The configuration for the keel should be the same as the wood acoustic panel. The recommend distance is 300~600mm
◕ Fill in the fiberglass wool in the gap of keel as per design.
Steel Keel and clips method:
- Fix light steel keel 001 on the keel by gunnail and screw.
- Clip 002, 003 insert into keel 001, pls make sure the wood acoustic panel be fixed
- Pls install the panels from left to right and from bottom to top.
- If want move the panels, pls move the clips 002, 003.
▼ Melamine: grain
▼ Pure
▼ Veneer
◕ Acoustic
◕ Fire-resistant
◕ Formaldehyde Emission
EN717-1 European Standard Environmental Test Report
BS476 British Standard Fire Test
13/3 Wuyangyiguan grooved acoustic panel
Delivery time and Production capacity:
Delivery time | 5 or 7 days for 1200sqm |
Production Capacity | 10000sqm per week |
Shipping& packing& payment terms:
Package | 10 pcs packed into one carton |
Pallet | 25 carton packed into one pallet |
20gp container | 385ctns/ |
Carton size/weight | 2450*150*170mm/ 35kgs |
Pallet size/weight | 2450*650*1000mm/975kgs |
Payment | T/T, 50% deposit and 50% before shipment. |
Min. order | 100sqm. You can mix finish, The quantity of each finish must be a multiple of 9,like 9,18 pcs. |
