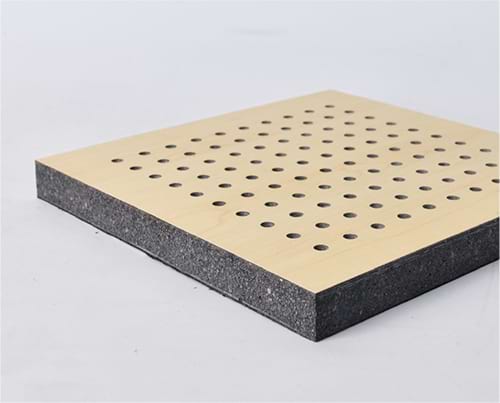

PRODUCT INTRODUCTION

Based on the principle of Helmholtz resonator, super micro-perforated acoustic panel can achieve NRC as high as 0.80 and average sound absorption coefficient as high as 0.70 with the aperture of 0.5mm and the perforation rate of 4%. It is a product with perfect combination of decorative and acoustic functions, especially for medium and low frequency sound absorption.

Super micro-perforated acoustic panel is made of high-quality panel, which has environmental protection, fire resistance and other properties, and has a wide selection of finishes and base materials, which can well meet the diversified acoustic and decorative needs of customers.

SPECIFICATIONS

Name	Super Micro-Perforated Acoustic Panel
Size	W 600mm /1200mmL 600/1200/2400mmT 12/15/18mm , other customized
Model	PAV2.2/0.5-12/15
Base Materials	Standard / Eco-friendly / Fire-resistant / Moisture-proof / A Grade / Non-inflammable/ other customized
Finish	Veneer / Melamine / HPL
Base Materials	Black Fire-resistant Acoustic Fleece / Soundtex Acoustic Fleece
Fire Performance	Reach to Class 1 under BS476 part 7 standard，Class A under ASTM-E84 standard
Eco Performance	Reach to E1/E0 of GB18580-2017；VOC A+ certification

ACOUSTIC PARAMETERS

Sound absorption structure: WINEGO super micro-perforated acoustic panel (V2.2/0.5-12/15 type) +50mm thick fiberglass panel +100mm cavity. The test data comes from Architectural Acoustics Laboratory of South China University of Technology.

PAV2.2/0.5-12/15

资源-1500x

BASE MATERIALS

A grade MGO board

Red fire-resistant MDF

Black HDF

Pine eco-friendly MDF

FINISHES

melamine natural

Nearly 20 years of decorative panels, combined with super micro-perforated sound absorption design. While taking into acoustic function, it provides creative space for aesthetics

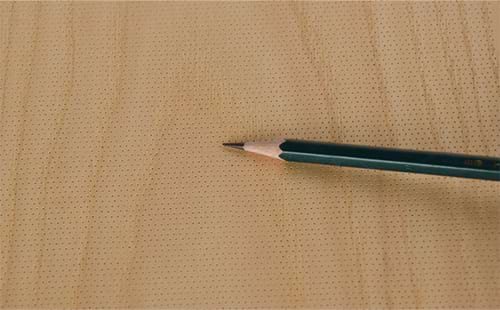

The average square meter contains 206,000 holes. Looking at it from a distance, it is a veneer, while looking at it closely, it is a sound-absorbing panel, keeping the integrity of wood grain

Utility model patent certificate
The patented products of WINEGO must be investigated for counterfeiting

Acoustic Test Report
The NRC is as high as 0.8 with 0.5mm aperture and 4% perforation rate. The cavity is communicated with the outside through a plurality of perforations, which is equivalent to the parallel combination and interaction of a large number of Helmholtz resonators, and the sound absorption performance is qualitatively changed and optimized

Fire resistant test report
The fireproof performance reaches
Class 1 under BS476 part 7 standard，Class A under ASTM-E84 standard

Environmental protection test report
Reach to E1/E0 of GB18580-2017；Achieved VOC A+ certification (the highest level) for the safety of the indoor environment

APPLICATION

Education Space, Medical Space, Public Space, Retail Space, Office Space, Hotel Space，and Home Spaces with high acoustic and aesthetic requirements

WALL INSTALLATION

Wood Battens Installation

1. Wooden keel leveling wall (spacing 400-600mm).

2.Fill fiberglass acoustic panel between wooden keels.

3. Fix the super micro-perforated acoustic panel to the wooden keel with a gun nail, and insert the wooden slip into the female slot.

4.Repeat above works, until the installation is complete, gap between panels is generally recommended to be 3-5mm, and the location of the nail is recommended on the side of the panel.

5.Installation completion effect.

SUSPENDED CEILING SYSTEM

Tegular Ceiling SC-T

图片20 (1)

NRC Test Report

Class 1（BS476-7）

Class E1（ EN717-1 ）

A+ Class（ISO 16000-9）

Super Micro-perforated Acoustic Panel
