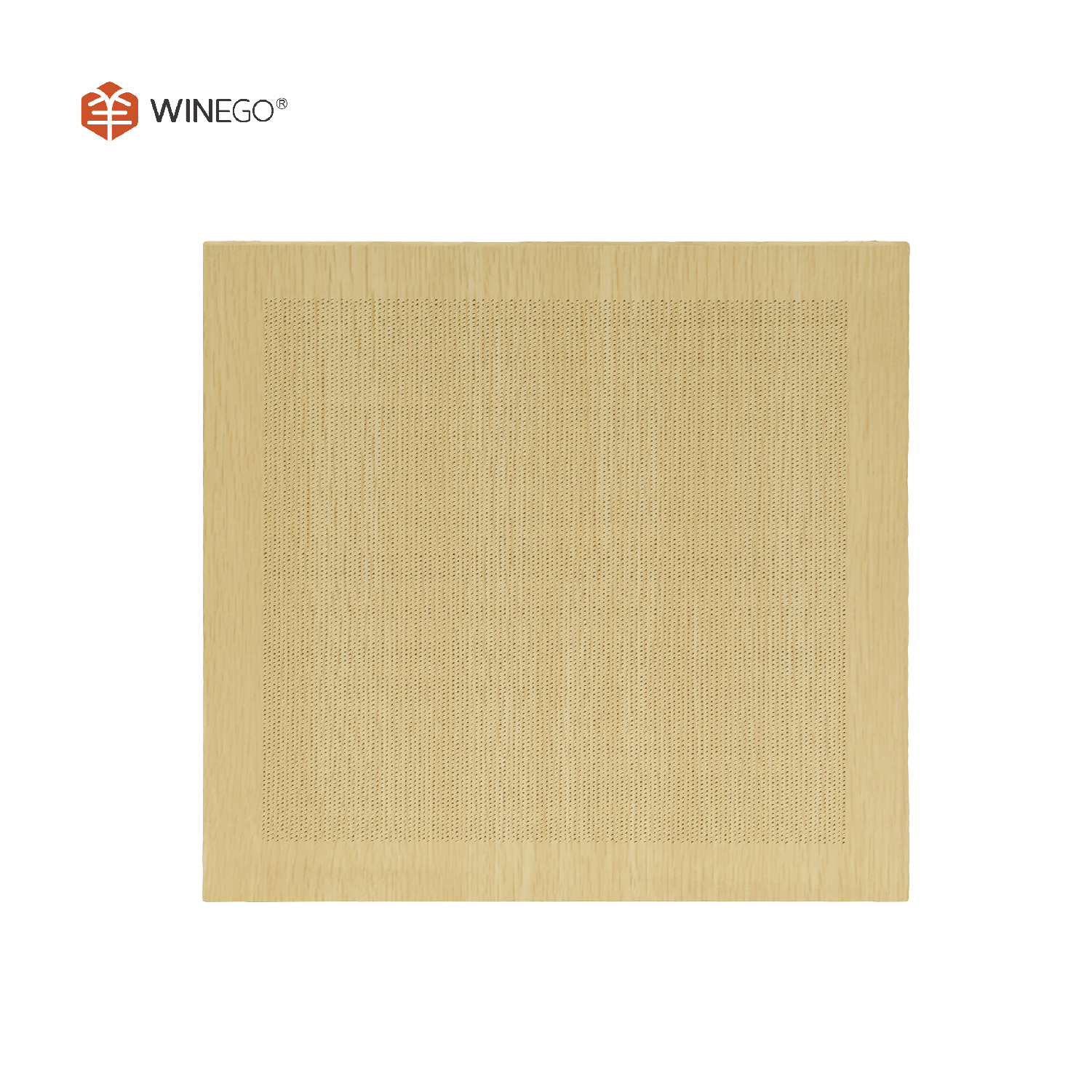

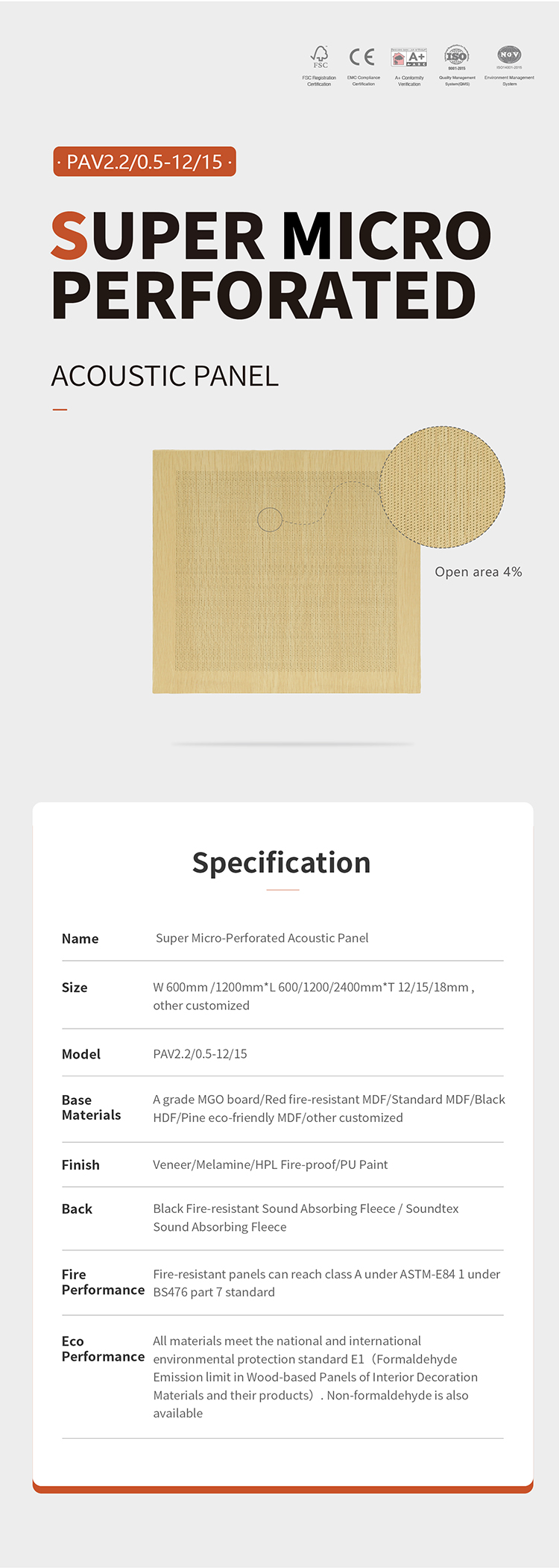

SUPER MICRO-PERFORATED ACOUSTIC PANEL

PAV2.2/0.5-12/15

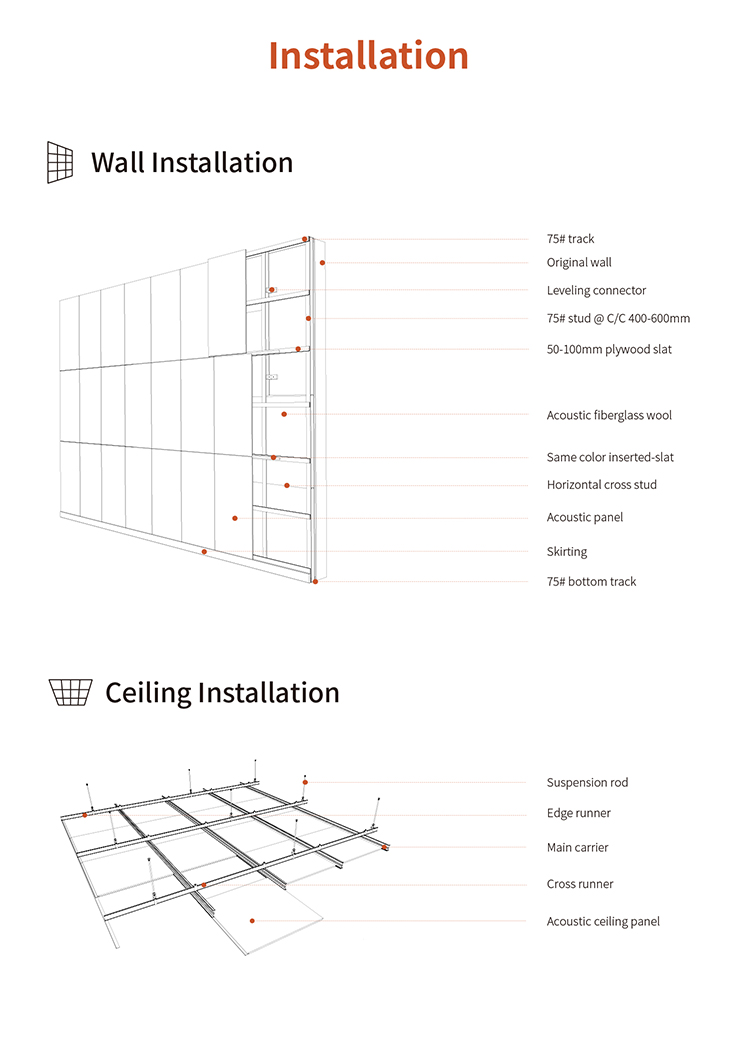

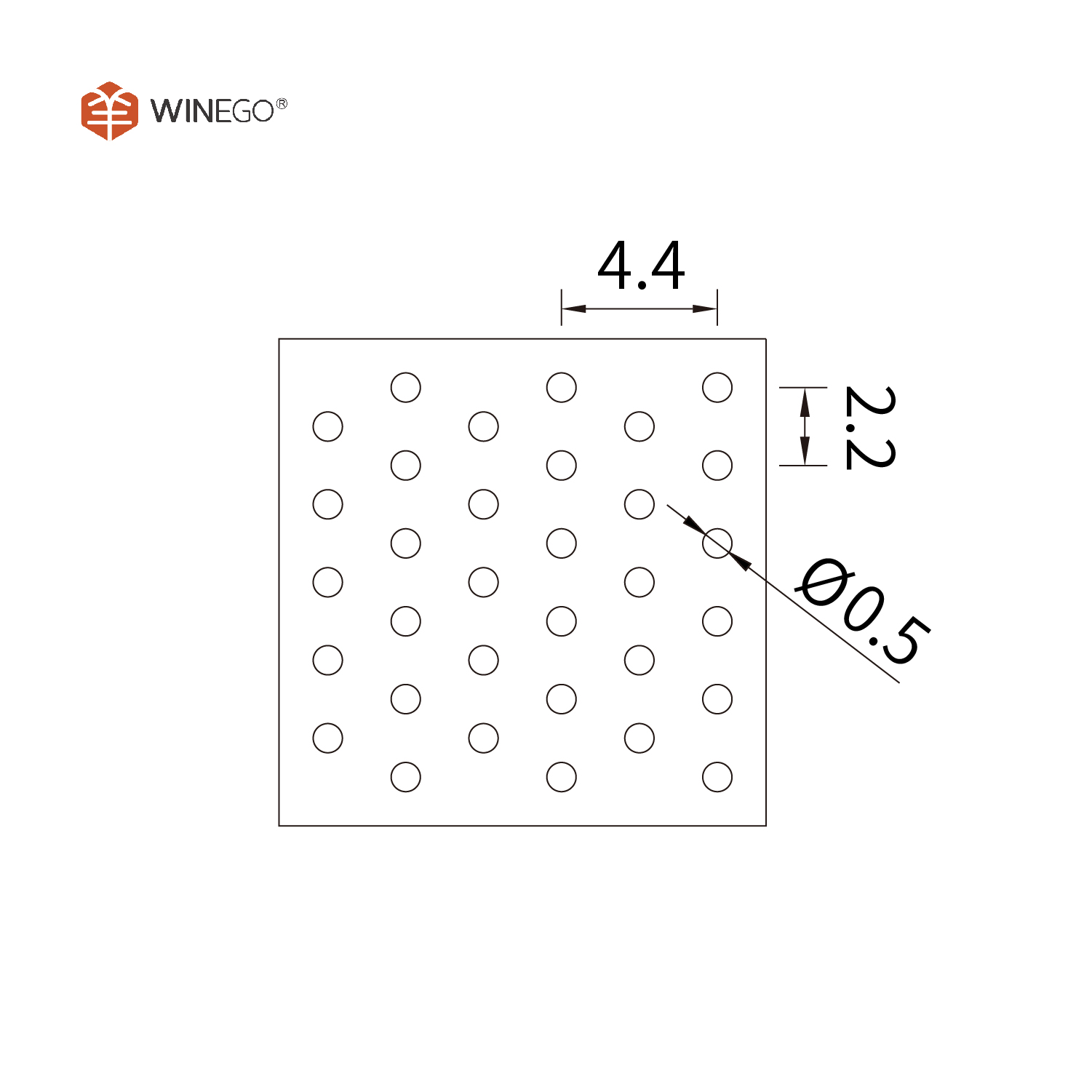

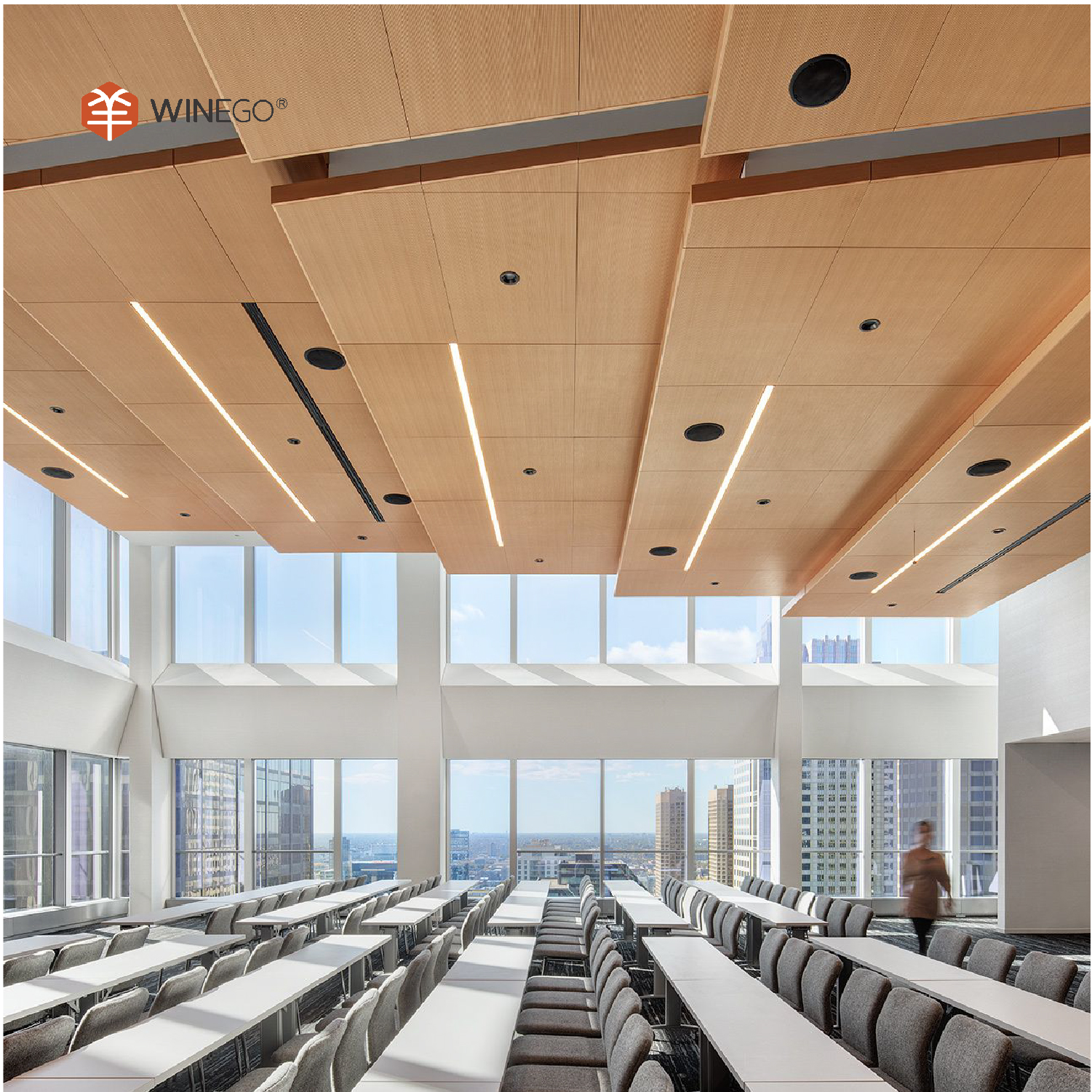

PAV2.2/0.5-12/15 micro-perforated panel, based on the principle of Helmholtz resonator can achieve NRC 0.8, with the aperture of 0.5mm and the perforation rate of 4%. It is a product with perfect combination of decorative and acoustic functions, especially for medium and low frequency sound absorption. Panels are used for removable or fixed ceilings and walls. It can be provided with different surface finished and different edges.

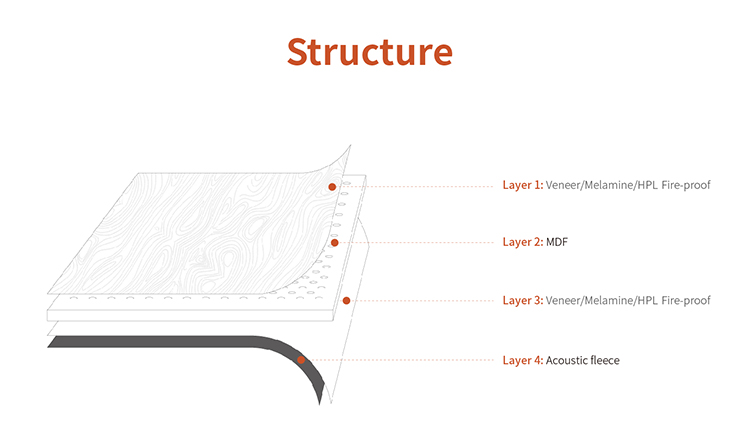

Finishes: Melamine/Laminate/Engineering veneer/Veneer

Back Layer: Acoustic fleece

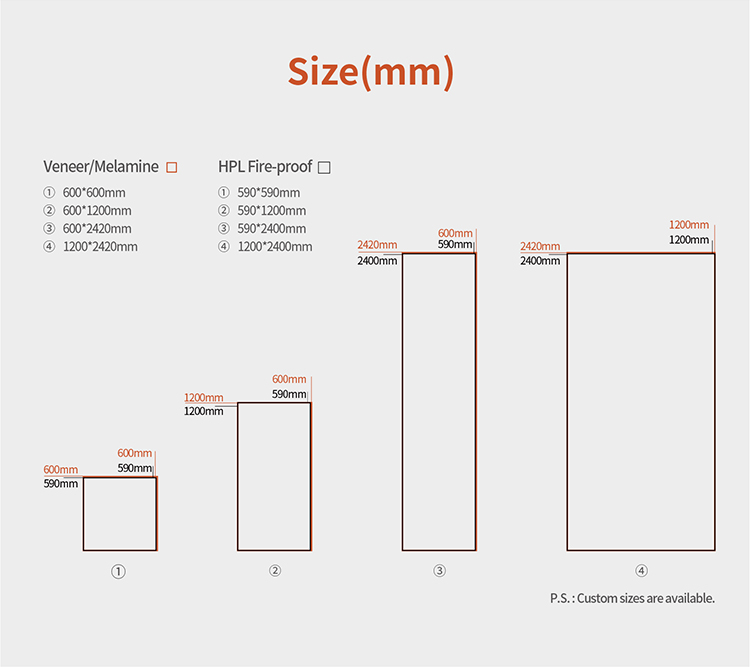

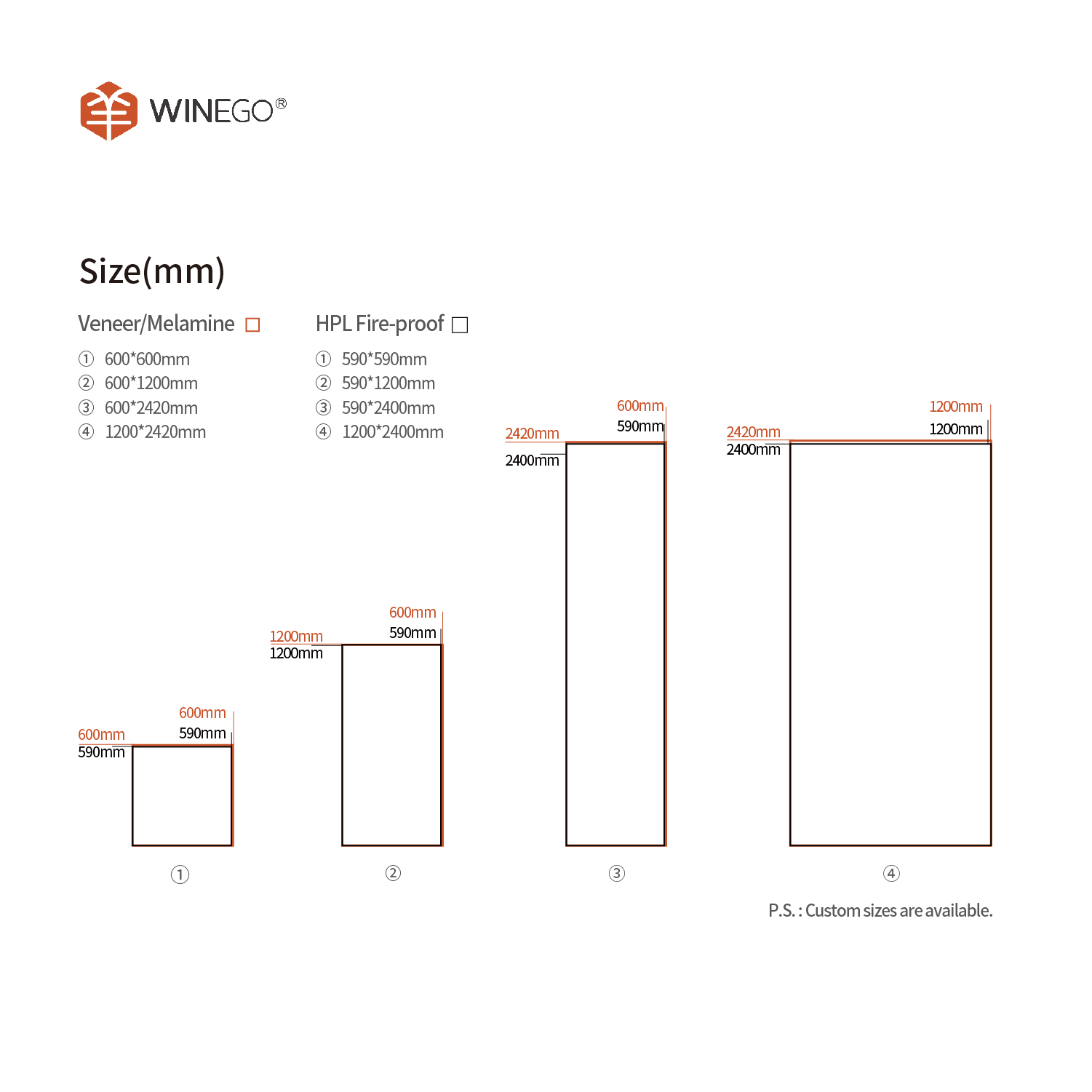

Size: W 600mm /1200mm*L 600/1200/2400mm*T 12/15/18mm , other customized

Perforation Rate: 4%

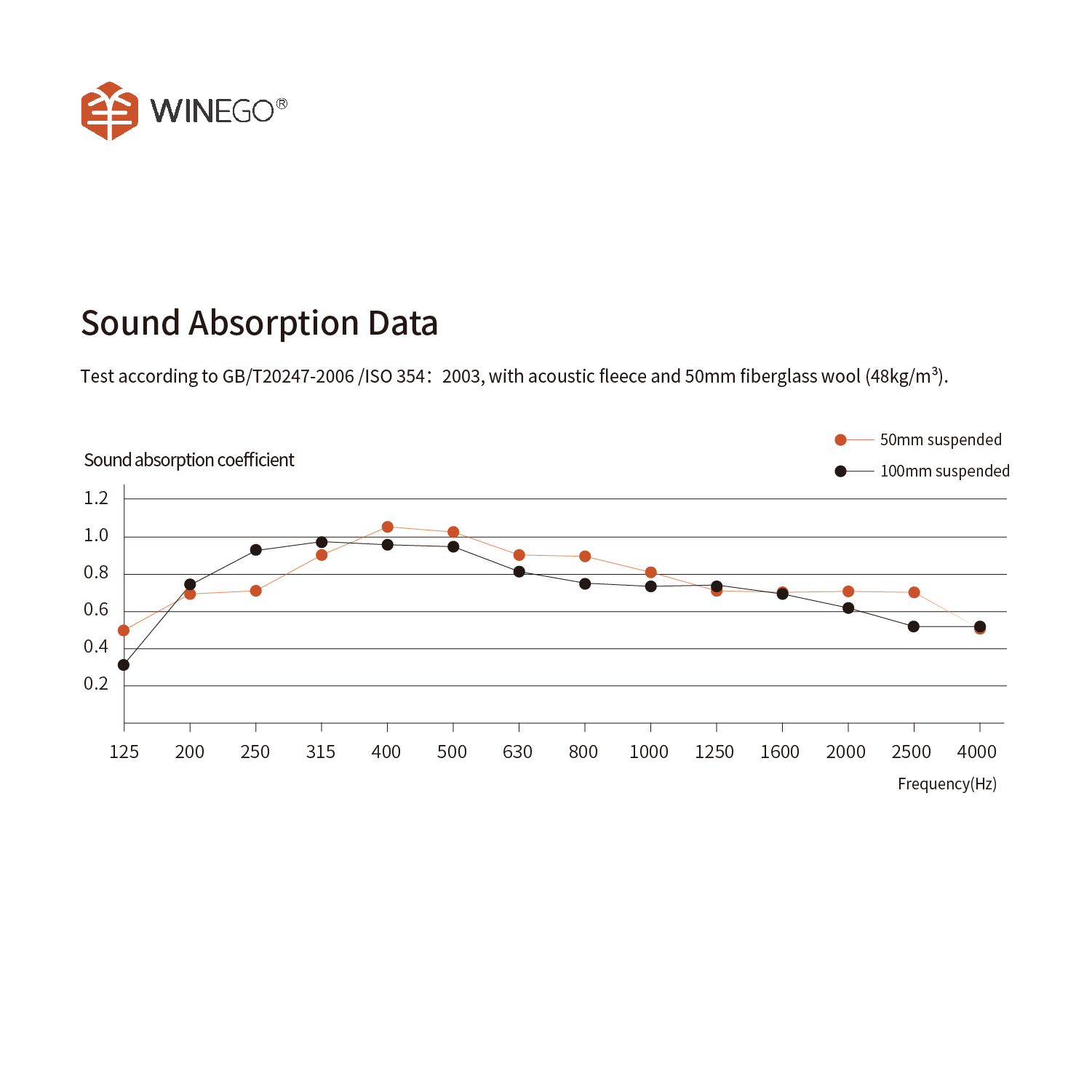

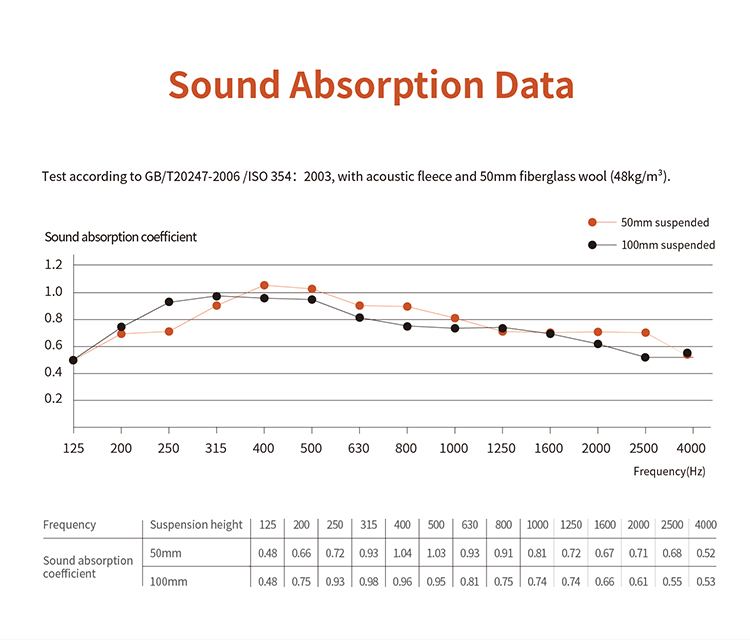

NRC: 0.8 (Test according to GB/T20247-2006 /ISO 354：2003, with acoustic fleece and 50mm fiberglass wool (48kg/m³))

Fire Performance: BS476(Class 1), ASTME84 (Class A), EN13501 (B-s1,d0)

Eco Performance: EN717(Formaldehyde Emission(In air): 0.08mg/m³)

Certificate: FSC, A+
