Low Frequency Damping Bricks: How They Control Bass Vibrations In Recording Studios And Theaters

Controlling low-frequency sound is the most notoriously difficult, expensive, and misunderstood challenge in acoustic design. Standard acoustic foam cannot stop bass from bleeding through your walls. High-energy, long-wavelength bass frequencies penetrate standard drywall with ease. They travel straight through concrete foundations and create aggressive structure-borne noise. This vibrating "humming" or "buzzing" effect ruins pristine recording takes. It also disturbs adjacent neighbors endlessly.

To solve this structural failure, professionals introduce a specific solution. They use the low frequency damping brick. It is a specialized, high-mass component designed to decouple walls, add critical mass, and convert low-frequency kinetic energy into harmless heat. Our goal is to provide a comprehensive technical evaluation framework. We wrote this for studio builders and home theater designers. By the end, you will know exactly if damping bricks are the right structural investment for your acoustic build-out.

Key Takeaways

• Mass and Decoupling are Mandatory: You cannot "absorb" structure-borne bass with porous materials alone; effective bass vibration control requires heavy physical mass and mechanical decoupling.

• Physics Dictate Design: A 40Hz sound wave is roughly 28 feet long. Stopping it requires structural systems like "mass-spring-mass" cavities, not surface-level treatments.

• System Integration: Low frequency damping bricks work best when combined with complementary materials like Sound Insulation Felt and constrained layer damping (e.g., Green Glue).

• Implementation Risk: Failing to leave proper air gaps or accidentally creating rigid structural connections (flanking paths) will render expensive damping materials useless.

The Physics of Bass Transmission (Why "Cheap" Fixes Fail)

Acoustic treatment failures almost always stem from a misunderstanding of physics. To stop noise, we must first separate it into two distinct categories: airborne noise and structure-borne noise. High frequencies typically travel through the air. You can easily stop them using basic foam panels or heavy curtains. Bass behaves entirely differently. It does not just push air. It physically shakes framing, floor joists, and concrete foundations. When sub-bass hits a wall, the wall becomes a giant speaker diaphragm. It transfers acoustic energy directly into the next room. This is why proper bass vibration control requires heavy mechanical decoupling rather than surface-level absorption.

The wavelength problem dictates our design constraints. Low frequencies generate massive physical waves. Consider the exact mathematical reality of sound waves:

• A 100Hz frequency produces a wave roughly 11 feet long.

• A 40Hz frequency creates a wave spanning approximately 28 feet.

• A 20Hz sub-bass wave extends an incredible 56 feet.

Because these waves are so long, they easily wrap around objects. This phenomenon is known as diffraction. When a 28-foot wave encounters a standard lightweight drywall partition, it essentially ignores the obstacle. The wave passes right through the structure. It can also bypass the wall entirely by traveling through the floor beneath it.

Users often expect standard soundproofing methods to fix extreme low-end issues. Reality quickly proves them wrong. A common mistake involves installing thicker laminated glass. Another frequent error is stuffing standard fiberglass directly against an existing wall. These approaches isolate mid-to-high frequencies effectively. However, they leave rigid physical connections intact. If wooden studs touch both the inner and outer drywall layers, acoustic energy simply bypasses the treatment. The vibrations travel straight through the structural framing. Without severing these rigid paths, your cheap fixes will definitively fail.

What is a Low Frequency Damping Brick?

A low frequency damping brick is a highly specialized, high-density construction material. Engineers use it within wall assemblies or floating floors to block extreme low-end sound transmission. Unlike standard clay or concrete masonry, these bricks feature advanced vibration-deadening properties. They integrate heavy structural mass and internal damping compounds. Builders typically stack them behind an isolated drywall layer or use them as a foundational perimeter for floating floors.

These components operate using two primary mechanisms of action:

1. Inertia and Mass: Extreme physical weight provides the first line of defense. Heavy objects resist motion. When a 40Hz wave strikes a massive damping brick wall, the wave lacks the kinetic energy required to physically move the structure. This massive inertia forces the sound wave to reflect backwards rather than passing through.

2. Damping Conversion: Standard mass alone can ring or resonate at certain frequencies. Damping bricks solve this. Their internal composition acts as a mechanical shock absorber. When the brick experiences slight movement, it converts that vibrational energy into microscopic thermal energy. The bass wave literally dissipates as harmless heat.

Understanding these bricks requires examining the "mass-spring-mass" principle. This concept forms the core of the legendary "room-within-a-room" studio design. You need two distinct, heavy boundaries. The existing exterior wall acts as the first mass. The new interior wall, constructed using heavy damping bricks, acts as the second mass. The air gap between them functions as the "spring."

This trapped air spring compresses and expands as sound pressure hits it. Because the damping bricks are incredibly dense, they do not yield to the pressure cavity. The system securely traps extreme low-end frequencies down to 30Hz inside the wall cavity. Without this heavy secondary mass, the air spring would simply push lightweight drywall into the adjacent room.

Comparing Structural Acoustic Damping for Studios

Choosing the correct material stack determines the success of your noise isolation project. Commercial builds require careful selection of physical boundaries. You must evaluate various materials to form a comprehensive system for acoustic damping for studios.

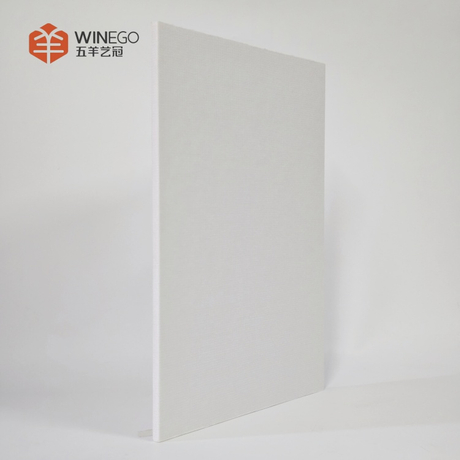

Consider the differences between structural bricks and panel-based solutions. Heavy structural bricks offer superior load-bearing capabilities. They excel at intercepting extreme sub-bass frequencies because of their sheer physical density. Conversely, a Sound Insulation Board is generally much thinner. These boards often consist of mass-loaded vinyl sandwiched between drywall layers. They are substantially easier to retrofit into existing rooms. However, they frequently lack the required raw mass to stop anything below 60Hz. If your primary issue is a powerful subwoofer shaking the foundation, insulation boards alone will likely fail.

We must also look at constrained layer damping. The industry standard involves liquid damping compounds, such as Green Glue. Builders apply these viscoelastic liquids between two rigid layers of drywall or wood. As sound hits the wall, the two rigid panels shear against each other in opposite directions. The liquid compound sits between them and resists this shearing motion. It provides incredible mid-to-low frequency control. You should frame constrained layer damping as a highly effective companion to heavy masonry. It is not a direct replacement for foundational mass.

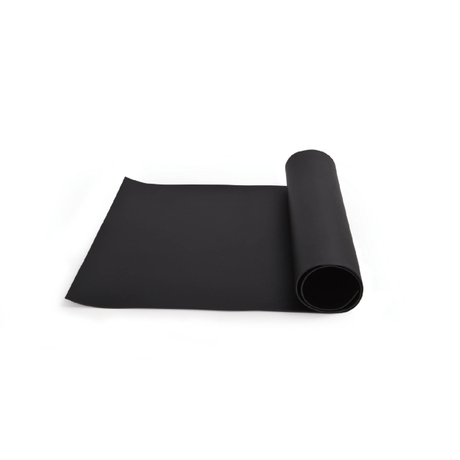

Finally, you need a method to separate your heavy walls from the existing floor. This requires a flexible decoupling material. You will use a Vibration Absorber, such as dense rubber pucks or neoprene mounts. Alternatively, builders lay continuous strips of heavy Sound Insulation Felt underneath the structural tracks. If you build a heavy brick wall directly on an existing concrete slab, bass will flank under the wall. The vibrations will travel through the continuous concrete floor. Heavy felt and rubber decouplers sever this transmission path entirely.

Here is a structural comparison chart to help clarify the role of each material:

Implementation Realities and Structural Risks

Building an isolated acoustic room requires an uncompromising approach to construction. The physics of sound isolation do not forgive sloppy implementation. You must maintain a highly skeptical, detail-oriented mindset during the building process. A single mistake can compromise the entire structural investment.

The air gap mandate serves as your most critical structural rule. Based on the quarter-wavelength rule of acoustics, you must maintain a physical void between the existing wall and the new damping structure. Sound waves reach their maximum particle velocity at a distance of one-quarter of their wavelength from a boundary. A deep air gap allows the "spring" mechanism to function efficiently. If you screw damping bricks directly into an existing stud, you completely defeat the purpose. The stud becomes a rigid mechanical bridge. It violently transfers the low-frequency energy directly past your expensive materials.

Weight and load-bearing constraints pose severe physical risks. Damping bricks are exceptionally heavy by design. Adding thousands of pounds of mass to a residential floor structure requires serious engineering oversight. You must consult a licensed structural engineer before proceeding. Attempting to build a massive isolated room on a standard second-story wooden joist system can lead to catastrophic structural failure. The floor could sag or collapse entirely. Always verify your load capacities first.

You must also obsess over flanking paths and room sealing. A common industry saying warns that a 99% sealed room is a 0% soundproofed room. Sound behaves like pressurized water. It will aggressively seek the path of least resistance. A single misplaced drywall screw can short-circuit a floating wall. An unsealed HVAC vent or an uncaulked electrical outlet creates a massive structural leak. Sub-bass pressure will instantly escape through these tiny voids. You must seal every single seam with acoustic sealant. You must isolate every ventilation duct using baffled silencer boxes. Do not leave any rigid connections intact.

Evaluation Framework: Should You Invest in Damping Bricks?

Deciding to use high-mass structural damping is a major financial and logistical commitment. You need a clear framework to evaluate whether your project actually requires this level of extreme intervention. You should start by assessing your exact success criteria.

Are you trying to stop a powerful subwoofer from vibrating your neighbor's floor? Or are you simply trying to flatten the bass frequency response inside your own listening room? If your goal is strictly internal acoustic treatment, you do not need heavy bricks. Porous bass traps and corner-mounted resonant absorbers represent the correct choice. They control internal reflections and decay times. However, if your goal is strict acoustic isolation—preventing sound from entering or leaving the room—you require structural mass. In this isolation scenario, damping bricks become an absolute necessity.

You must also accept a severe space versus performance trade-off. High-level noise isolation requires extraordinarily thick wall assemblies. You cannot cheat the laws of physics with ultra-thin products. Buyers must prepare to lose six to twelve inches of room footprint on all four walls. You also lose ceiling height and floor depth. This sacrificed space accommodates the bricks, the secondary drywall layers, and the critical decoupled air gaps. If your room is already critically small, this dimensional loss might make the project unviable.

Finally, carefully consider your budgeting and project scalability. Commercial damping systems demand a premium initial investment. The heavy materials and specialized shipping costs add up quickly. However, you must compare this to the cost of failure. Many builders try to save money by adding standard drywall to existing studs. They finish the room, turn on the studio monitors, and immediately hear the bass bleeding into the next room. They then have to tear down the brand-new walls, waste their initial capital, and start over. Doing it right the very first time with decoupled, heavy damping walls proves far more economical in the long run.

Conclusion

Controlling low frequencies in a studio or theater is ultimately an uncompromising exercise in physics. You cannot solve structure-borne sub-bass issues using lightweight panels or basic foam. Achieving true acoustic isolation requires massive physical density, dedicated spatial footprints, and total mechanical decoupling from the existing building structure. Heavy brick systems provide the crucial inertia needed to stop long sound waves in their tracks.

Your next steps should begin with rigorous acoustic measurement. We strongly advise taking waterfall plots of your empty room to identify the exact problematic frequencies. Once you know your target frequencies, you can calculate the required wall mass and air gap depth. Most importantly, consult with a licensed structural engineer. You must verify your existing floor system's load capacities before ordering any heavy damping materials. Plan carefully, build heavy, and sever every rigid connection.

FAQ

Q: Can I just use thick acoustic foam instead of a damping brick?

A: No. Standard acoustic foam only addresses high-frequency reflections and air particle velocity. It completely lacks the physical mass required to stop structural vibration. Extreme low-frequency sound waves will pass directly through thick foam and continue vibrating the wall behind it.

Q: Do damping bricks go inside the room or inside the wall?

A: They go strictly inside the structural wall assembly. Builders use them to construct the boundary itself. This blocks sound transmission between rooms. This differs entirely from bass traps, which you place inside the finished room to treat internal acoustic reflections.

Q: How much space do I need to leave behind the damping wall?

A: The exact dimension depends on your specific target frequency. However, a minimum of 2 to 4 inches of fully decoupled air space represents the industry standard. This gap creates the necessary "spring" cavity for effective low-end pressure control.
