WINEGO's Custom Wood Wool Acoustic Panels represent the pinnacle of sound absorption and aesthetic excellence. With 19 years of experience, we offer high-quality panels suitable for various settings, including offices and workshops. Our panels are designed to meet rigorous acoustic and fire safety standards while offering customizable options to fit unique design needs.
Features:
Superior Acoustic Performance: NRC can reach to 0.90, certified by SGS.

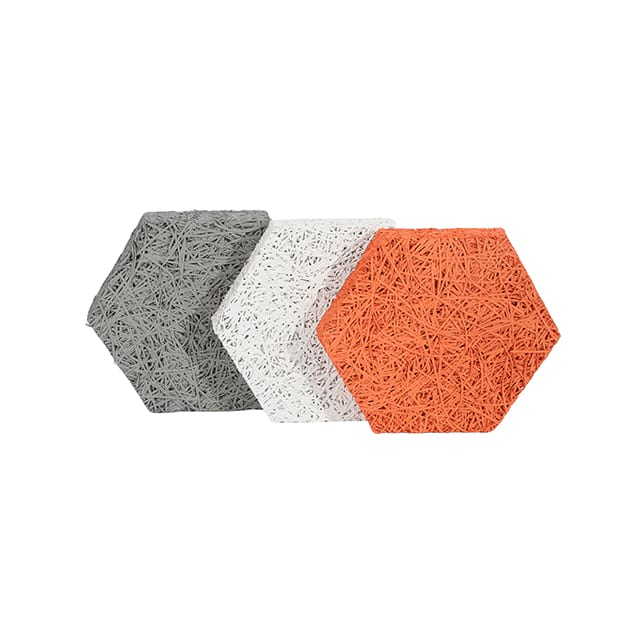

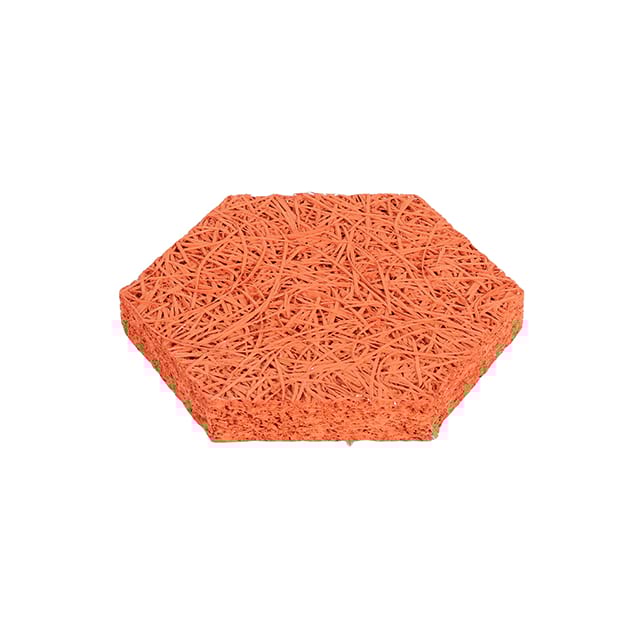

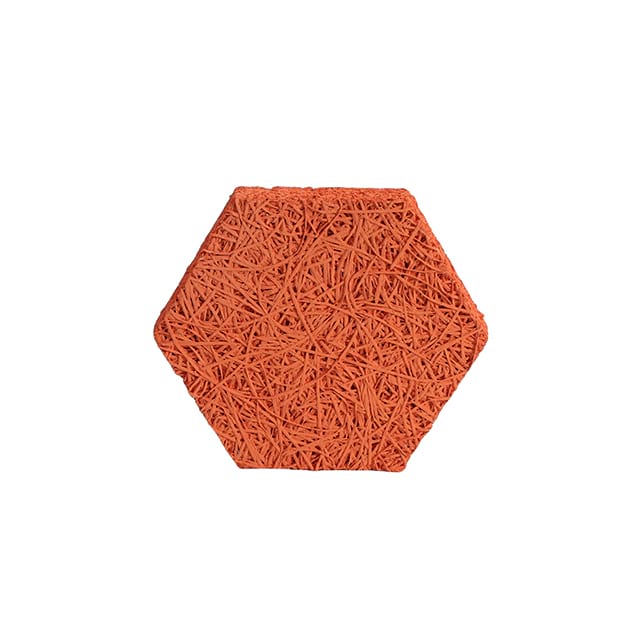

Custom Shapes: Available in triangles, hexagons, and more.
Eco-Friendly Materials: Made from 70% wood wool and 30% mixture, EI certified.
Fire Safety: Meets BS476-Part 7 Class 1.
Thermal Insulation: Excellent properties for energy efficiency.
Specifications
Materials | 70% wood wool with 30% mixture |
Size | Customizable, including 1200*2400mm |
Shapes | Triangles, hexagons, and more |
Thickness | 15mm, 20mm, 25mm |
Painting Finish | Pantone or RAL colors |
NRC | 0.90, SGS Test certified |
Fire-Resistant | British Standard BS476-Part 7 Class 1 |
Weight | 8kg/sqm for 15mm panels |
Environmental Certification | E1 |
| Moisture Resistance | Suitable for indoor use |
Applications
1. Offices: Enhance acoustics and aesthetics.
2. Workshops: Improve sound quality and thermal insulation.
3. Garages: Durable and sound-absorbing.
4. Exhibition Stands: Create appealing displays.

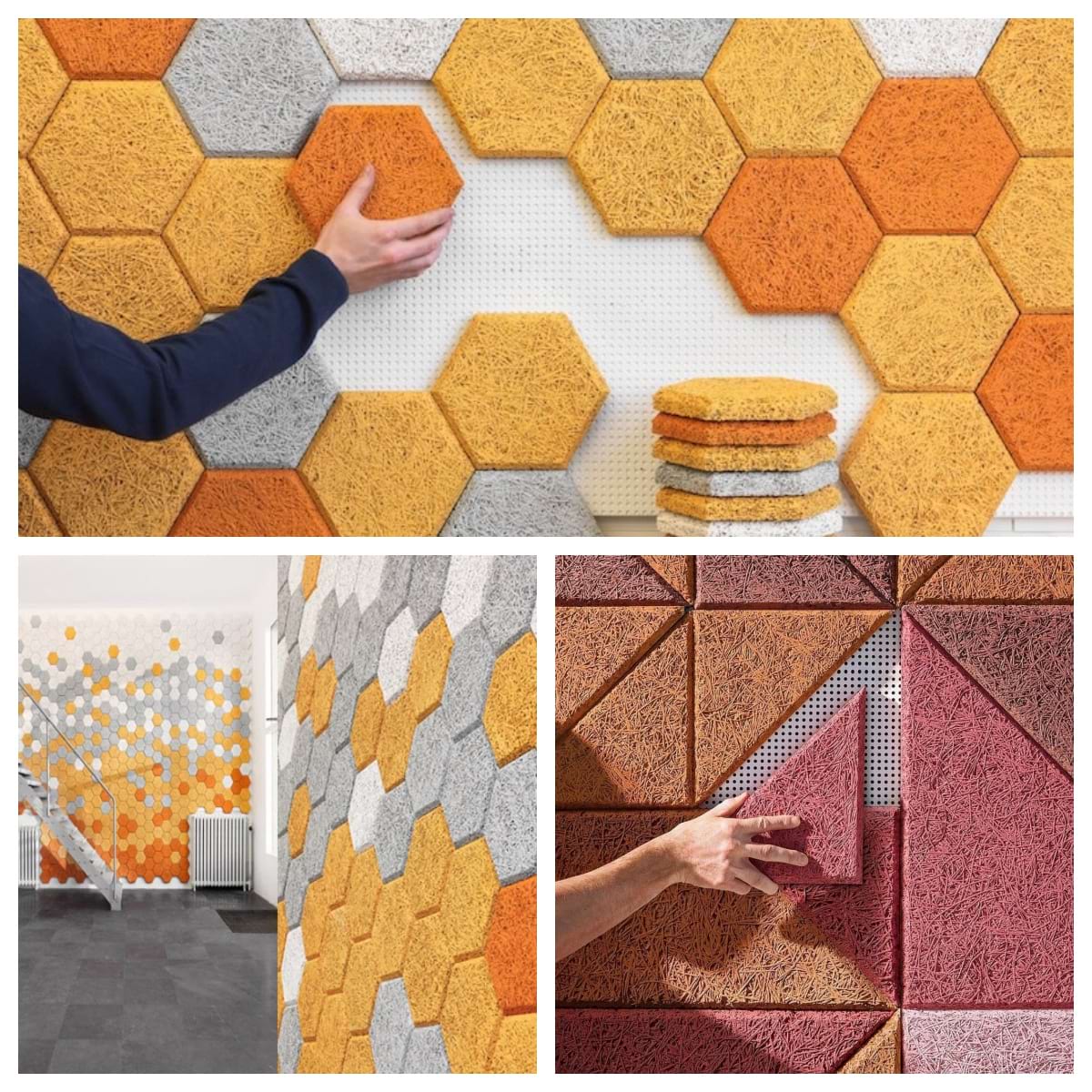

Installation Method
Installation Method 1: Adhesive Glue
Process
1. Prepare the Surface: Ensure the wall is clean, dry, and free of dust.
2. Measure and Mark: Use a measuring tape and level to mark the panel positions on the wall.
3. Apply Adhesive: Apply a generous amount of adhesive glue to the back of the panel.
4. Position the Panel: Carefully position the panel on the marked area, pressing firmly.
5. Hold in Place: Hold the panel in place for a few minutes to ensure a strong bond.
6. Repeat: Repeat the process for each panel, ensuring they are aligned correctly.
FAQs for Engineers, Builders, Designers, and Owners
1. What sizes and thicknesses are available?
Our standard sizes are 1200*2400mm, with thickness options of 15mm, 20mm, and 25mm.
2.Can I customize the panel shapes?
Yes, we offer customization in shapes, including triangles and hexagons, to meet specific design requirements.
3.Do the panels meet fire safety standards?
Yes, our panels meet the British Standard BS476-Part 7 Class 1 for fire safety.
4.Are the panels environmentally friendly?
Yes, our panels are made from 70% wood wool and 30% mixture, with an EI environmental certification.
5.How effective are the panels at sound absorption?
Our panels have an NRC range of 0.4 to 0.95, providing excellent sound absorption, as certified by SGS.
6.How are the panels installed?
Small panels can be installed using adhesive glue, while large panels require fixing with a nail gun.
